Description:
Specifications

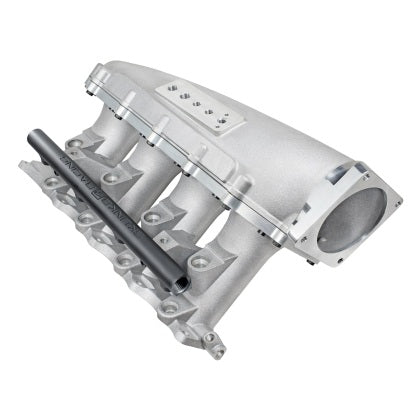

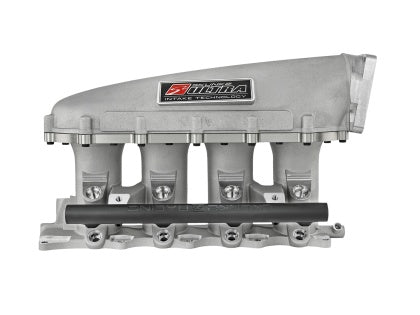

Designed for serious racers and high-horsepower builds, the Skunk2 Ultra Series Race Intake Manifold for Honda S2000 F20C and F22C engines represents the next evolution in intake manifold performance. Developed through extensive research and CFD (Computational Fluid Dynamics) analysis, the Ultra Race Manifold delivers exceptional airflow, increased plenum volume, and improved power potential for naturally aspirated and forced induction applications.
Featuring a modular three-piece design with a removable plenum, the Ultra Race Intake Manifold allows for easy servicing, porting, and future plenum volume upgrades through optional spacers. Large tapered runners and raised velocity stacks promote superior airflow distribution and cylinder filling, helping maximize horsepower and torque throughout the RPM range.
Built specifically for competition-focused applications, this manifold incorporates a large 3.5-liter plenum, a 90mm throttle body flange, provisions for secondary fuel injectors, and multiple accessory ports for advanced engine management and fuel system configurations.
Whether you're building a naturally aspirated road race car, time attack machine, or turbocharged drag setup, the Skunk2 Ultra Series Race Intake Manifold provides the airflow capacity needed to support serious power goals.
Key Features
- Modular 3-piece design with removable plenum
- Large 3.5L plenum volume
- 90mm throttle body flange (Ford 5.0 pattern)
- Tapered high-velocity runners
- Raised 87mm velocity stacks
- Secondary fuel rail and injector provisions
- Multiple NPT accessory ports
- Thermal intake manifold gasket included
- Designed for competition applications
- Compatible with Honda S2000 F20C and F22C engines
Applications
Honda S2000
- 2000 Honda S2000 (F20C)
- 2001 Honda S2000 (F20C)
- 2002 Honda S2000 (F20C)
- 2003 Honda S2000 (F20C)
- 2004 Honda S2000 (F22C)
- 2005 Honda S2000 (F22C)
- 2006 Honda S2000 (F22C)
- 2007 Honda S2000 (F22C)
- 2008 Honda S2000 (F22C)
- 2009 Honda S2000 (F22C)
What's Included
- Skunk2 Ultra Race Intake Manifold
- Thermal Intake Manifold Gasket
- Installation Hardware
Vehicle Make
- Honda
Vehicle Model
- S2000
Vehicle Engine
- F Series
Vehicle Year
- 2000
- 2001
- 2002
- 2003
- 2004
- 2005
- 2006
- 2007
- 2008
- 2009
