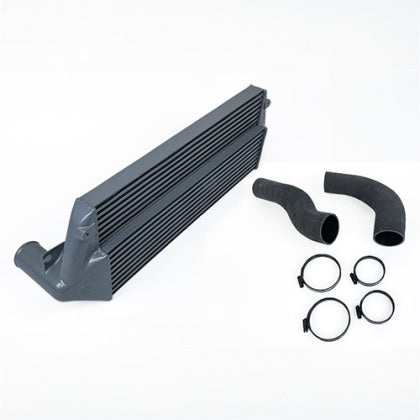

CSF 2023+ Toyota GR Corolla/2020+ GR Yaris High Performance Stepped Core Intercooler System - Silver

Testing was performed at World Motorsports in Torrance, CA with the help of Moto IQ . The OEM intercooler was run first to establish a baseline. You can see the OEM intercooler reaches heat soak relatively quickly (about 3 pulls). Performance was fairly impressive for an OEM intercooler, able to drop the charge air temperatures approximately 150ºF. The CSF x Jackson Racing Intercooler just blew the factory system out of the water though. Charge air temperatures were reduced by more than 240ºF. That's 90ºF more than the OEM intercooler. This resulted in much lower Intake Air Temperatures (IATs) and that were just a few degrees over ambient. On top of that, heat soak took twice as long to set in. Even when heat soaked, the charge air temperatures remained around 60ºF cooler than that of the factory intercooler.

Features and Benefits

• High-Performance Tube & Fin Stepped Core Design for Maximum Surface Area Contact and Internal Air-Flow Volume
• Largest "Drop-in Fit" Intercooler Available in the Industry
• Designed with 3D Scanning/Rapid Prototype Technology to Ensure Precise Fitment and Maximum Surface Area Utilization
• 100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability
• Includes Motorsport Grade Hoses and Clamps with larger 2.5in (63.5mm) Inlet/Outlet Connections
• Available in Silver (#8285) and Black (#8285B) Finishes
• True Plug-and-Play "Drop-in Fit" Installation. The OE Air Ducting requires minor trimming to be used with the Intercooler
• Individually Leak and Pressure Tested
• 2-Year Limited Warranty
• Real World Testing by MotoIQ
• Core Row Quantity:

  1
  Inlet Fitting Gender:

  Male
  Inlet Tank Material:

  Aluminum
  Mounting Hardware Included:

  No
  Outlet Fitting Gender:

  Male
  Type:

  Air-to-Air
  Universal Or Specific Fit:

  Specific
  Grade Type:

  Performance
  ADD-ON:

  7233
  Inlet Outside Diameter:

  63.5mm
  Outlet Type:

  Barbed
  Core Length:

  630mm
  Core Thickness:

  86mm
  Core Width:

  253mm
  Outlet Outside Diameter:

  63.5mm

• Toyota

• GR Corolla

• 1.6L

• 2023
• 2024
• 2025
