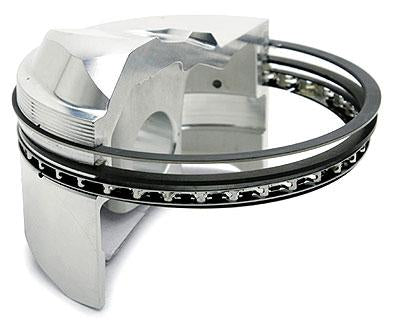

JE Pistons Ring Sets 1.0-1.2-2.8-3.250

JE Pistons Ring Sets 1.0-1.2-2.8-3.250

$162.99
$162.99 $172.88

Hurry up! Only 1 items in stock.

Hurry up! Offer ends in
00 Days
00 Hours
00 Minutes
00 Seconds
Expected delivery date:
12 Apr Usually ready in 2-3 days.

Description:

Specifications

JG1004-3250
Description:
ProSeal Ring Set
2nd Ring (Heigh/Width/Type):
1.2mm / 0.138 / DPE
Bore:
82.55 mm(3.250 in)
Top Ring (Heigh/Width/Type):
1.0mm / 0.126 / CNS
Oil Ring (Heigh/Width/Type):
2.8mm / 0.128 / CNF
Category Hierarchy:
Auto>Accessories>Pro Seal Piston Rings
File Fit:
Yes
Industry:
Automotive
Oil Ring Thickness:
0.110
Out of Stock Message:
Call for Availability
Product Type:
Engine Piston Ring Set
Prop 65 (C, R or CR):
CR
Prop 65 Yes/No:
Yes
Second Compression Ring Thickness:
0.0472
Second Ring Facing Material:
Phosphate
Second Ring Material:
Ductile Iron
Third Ring Facing Material:
Carbon Steel
Third Ring Material:
Carbon Steel
Title:
Piston Ring Set - 3.250 in. Bore - 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil - 4 Cyl.
Top Compression Ring Thickness:
0.0394
Top Ring Facing Material:
Nitride
Top Ring Material:
Carbon Steel
Third Ring Shape:
Flex Vent
Title - Web:
Piston Ring Set - 3.250 in. Bore - 0.0394 in. Top / 0.0472 in. 2nd / 0.110 in. Oil - 4 Cyl.
Top Ring Axial Height:
1.00
Top Ring Radial Width:
0.126
Top Ring Shape:
Barrel Face, Back Cut, Neutral
Bore Diameter - Web:
3.250 IN / 82.55 MM
Bore Diameter:
82.55
Engine Type:
ICE
Oil Ring Axial Height:
2.80
Oil Ring Radial Width:
0.128
Prop 65 - Short Label:
Prop 65 Warning Label.JPG
Ring Set Thickness:
0.0394 in. Top x 0.0472 in. 2nd x 0.110 in. Oil
Ring Type:
3 Ring
Second Ring Axial Height:
1.20
Second Ring Radial Width:
0.138
Second Ring Shape:
Napier, Back Cut, Neutral
